Rumah ProdukIn-Line IV Filter1.2 micron IV Filter for infusion therapy

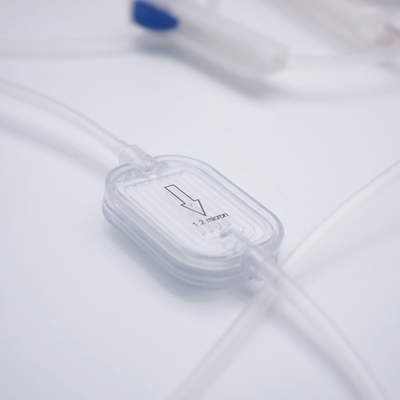

1.2 micron IV Filter for infusion therapy
1.2 micron IV Filter for infusion therapy 1.2 micron IV Filter for infusion therapy 1.2 micron IV Filter for infusion therapy 1.2 micron IV Filter for infusion therapy

1.2 micron IV Filter for infusion therapy

Detail produk:
Tempat asal: Cina
Nama merek: OEM avaliable
Sertifikasi: YY 0286.1 GB 8368-2018 ISO9001
Nomor model: F33
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 100.000 pcs
Harga: $0.15-$0.22 per piece
Kemasan rincian: 750pcs per bungkus dengan label, 4 bungkus per karton atau dapat disesuaikan
Waktu pengiriman: 30 hari
Syarat-syarat pembayaran: L/C, T/T
Hubungi sekarang
  • Informasi Detail
  • Deskripsi Produk

Informasi Detail
Nama produk: Filter 1,2 mikron IV sekali pakai Filter Perumahan: ABS
Ukuran Pori: 1,2um Bahan Sedang: Pes, ptfe untuk ventilasi
Hentikan Ketinggian cairan: ≥1,5Meter Mode Perakitan: Peleburan panas atau pengelasan ultrasonik
Sterilisasi: Tidak steril/EOS Jenis: F, sekali pakai
Keuntungan: Penghentian Cairan Otomatis Warna: Natural, tahan cahaya
Kompatibilitas: Kompatibel dengan tabung IV standar Jaminan: 3 tahun
Aplikasi: Set Infus Negara Asal: Cina
Menyoroti:

1.2 micron

,

iv filter 1.2μm

,

infusion set

Deskripsi Produk

IV Filter With Hydrophilic PES-pp 1.2μm and Hydrophobic PTFE 0.45μm for infusion set



F33 IV Filter is an air eliminating filter for the removal of inadvertent particulate debris and other components like incomplete mixing of drugs and entrained air in catheter which may be found in solutions intended for intravenous use. The filtration efficiency of the membrane and the overall design of the filter can impact the safety of drug delivery for human beings.



Features :

  • Easy to connect to IV tubing sets with standard luer inlet and outlet slip
  • Precision filtration of fine particles
  • High retention efficiency
  • Range of pore size options
  • Automatic air-stop
  • Lightproof-colored housings for light sensitive drugs is available
  • Printing available for ease of product identification

Specifications:





Dimensions: 57*29.5*0.94mm(inlet/outlet connector included)
Weight: 5.7-5.8g
Filtration area: 6.0CM2
Venting area: 0.54CM2
Venting air flow rate: 25ml/min@5kpa
Max burst pressure: 3.6bar(52.5psi)
Operating Temp: 5-40℃
Storage Temp: 0-50℃
Filtration rate: PES-PP 5.0μm ≥95%,
PES-PP 3.0/2.0/1.2μm ≥90%
Min water flow rate: PES-PP 1.2μm ≥500ml/10min@10kpa
PES-PP 2μm ≥600ml/10min@10kpa
PES-PP 3μm ≥800ml/10min@10kpa
PES-PP 5μm ≥1000ml/10min@10kpa
Sterilization: Ethlene Oxide(Max 60℃)



Applications:

  • Filter is designed for use in filtration of intravenous for removal of particles larger than 1.2μm
  • Infusion set



Package&Label:



3000pcs/box, 4 inner PE bags with 750 pcs inside each. each bag is sealed separately and cushion between each other.
Each bag is labeled with information as following, different lots in one box are closed separately and labeled seperately to prevent.

1.2 micron IV Filter for infusion therapy 0

Label:

Kamar tetes vena

Inline IV Filter

Filter Cairan Intravenous Inline
